K1018
Large Low Profile Tilt Mount for 32"- 65" Panels
SKU
192202
MPN:
K1018
Karbon A/V 32"- 65" Tilt TV WALL MOUNT
- Tilt Wall Mount
- Fits most displays: 32"- 65"
- Distance to the wall: 35mm
- Max loading capacity: 88lbs
- Built-in Lock system
- Tilt angle:0°~12° degree
| K1018 | |
|---|---|
| Size | Large |
| TV Panel Size | 32" to 65" |
| Profile Depth | 1.38" |
| Post Level Adjustment | n/a |
| Pull Out | n/a |
| Backplate | Full / Partial Open |
| Weight Capacity | 88 lbs (39.91kg) |
| Tilt | +12° to 0° |
| Overall dimensions (H x W x D) |
16.93" x 27.24" x 01.38" |
Manuals & Technical Documents

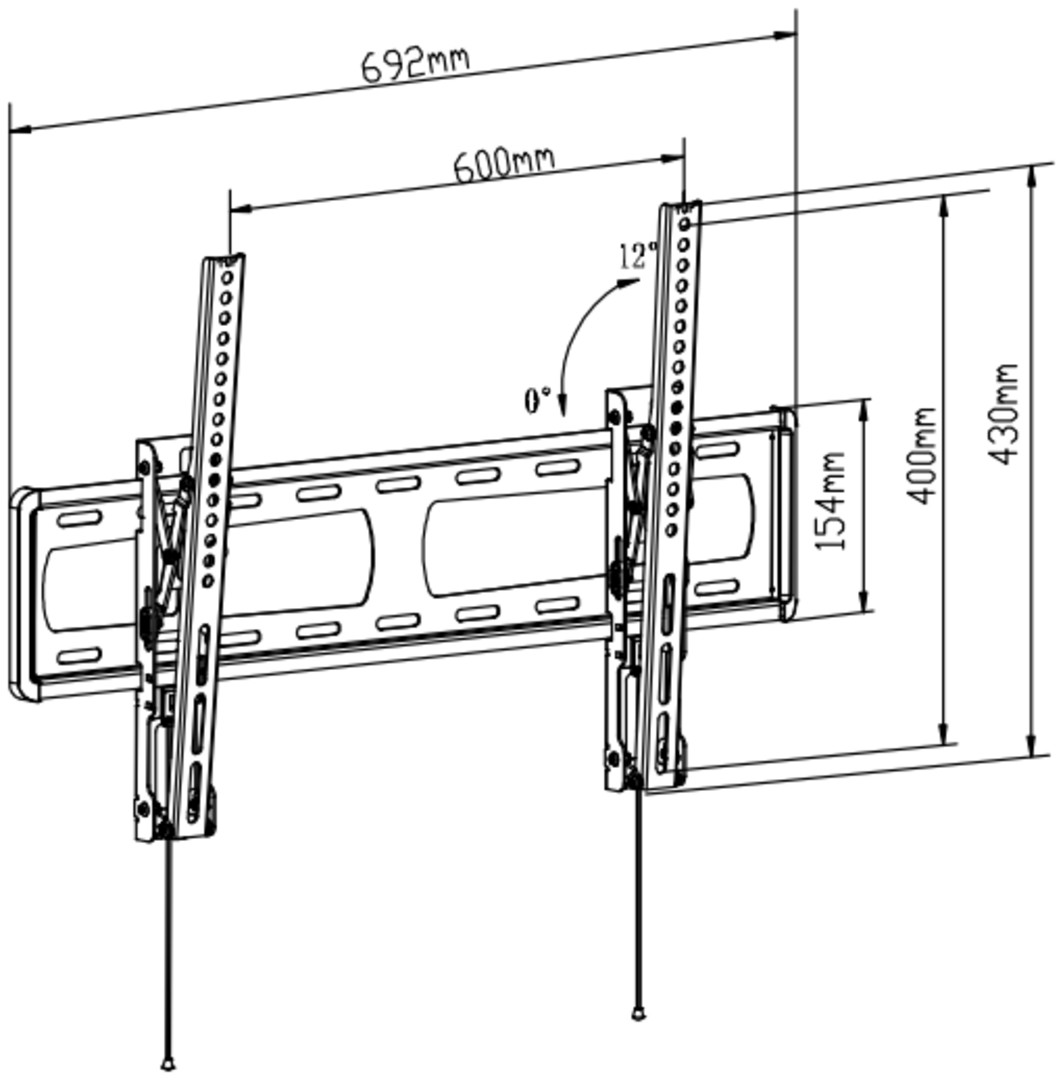

Technical Drawingscc47113f7cb3d59ce54032303111f697559dd041.jpg
