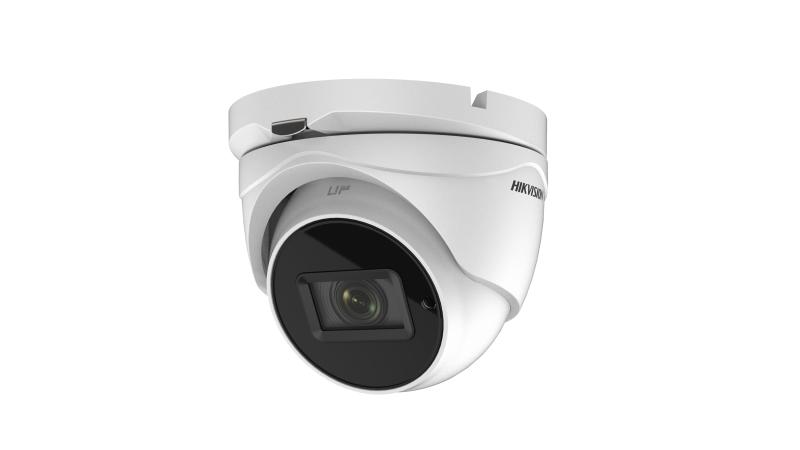

The Hikvision 5MP Turret Varifocal Camera 5MPTEZW provides high definition analog output. TurboHD means that the analog signal can be sent over existing coaxial cable, eliminating the need to run new cables for high definition video. EXIR 2.0 is Hikvision's proprietary IR extended range technology, which has a range of 130 feet (40 meters). The 2.7 mm to 13.5 mm motorized vari-focal lens is optimized for viewing angles that fit any situation. DWDR (Digital Wide Dynamic Range) ensures that ideal images are captured regardless of the lighting conditions.
- 5MP Turret Camera
- High Performance CMOS
- Up to 2560 x 1944 Resolution
- 2.7 mm to 13.5 mm Motorized Vari-Focal Lens
- 3D DNR, DWDR
- EXIR 2.0 up to 130 ft (40 m) IR Range
- Multiprotocol Output: TVI/AHD/CVI/CVBS
- Up-the-Coax (HIKVISION-C)
- IP67 Protection
Camera
Image Sensor 5 MP progressive scan CMOS
Resolution 2560 (H) x 1944 (V)
Minimum Illumination Color: 0.01 Lux @ (Æ’ 1.2, AGC on), 0 Lux with IR
Shutter Speed 1/30 s to 1/50, 000 s
Lens 2.7 mm to 13.5 mm motorized vari-focal lens
Horizontal Field of View 95.7° to 29.1°
Lens Mount Φ 14
Day / Night IR cut filter
Angle Adjustment Pan: 0° to 360°; tilt: 0° to 75°; rotate: 0° to 360°
Synchronization Internal synchronization
Frame Rate 5 MP @ 20 fps, 4 MP @ 30 fps, 1080p @ 30 fps
Menu
AGC Supported
Day/Night Mode Auto/color/BW (black and white)
White Balance ATW/MWB
BLC Supported
DWDR Supported
Language English
Functions Brightness, sharpness, DNR, mirror, smart IR
Interface
TVI Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40° F to 140° F (-40° C to 60° C), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ± 25%
Power Consumption Maximum 6.3 W
Protection Level IP67
Material Metal
IR Range Up to 130 ft (40 m)
Dimensions 4.88" x 5.29" x 4.38" (123.86 mm x 134.3 mm x 110.11 mm)
Weight Approximately 1.28 lbs (580 g)
